Big discounting Digging A Borehole For Water - SNR1600 Water Well Drilling Rig – Sinovo Detail:

Video

Optional

Rig operation by truck or trailer or crawler

Mast extension

Breakout cylinder

Air compressor

Centrifugal pump

Mud pump

Water pump

Foam pump

RC pump

Screw pump

Drill pipe box

Pipe loader arm

Opening clamp

Support jack extension



Technical Parameters

Item

Unit

SNR1600

Max drilling depth

m

1600

Drilling diameter

mm

105-1000

Air pressure

Mpa

1.65-8

Air consumption

m3/min

16-120

Rod length

m

6

Rod diameter

mm

127

Main shaft pressure

T

13

Lifting force

T

81

Fast lifting speed

m/min

23

Fast forwarding speed

m/min

44

Max rotary torque

N.m

31000

Max rotary speed

r/min

39/78

Big secondary winch lifting force

T

2.5/4(Optional)

Small secondary winch lifting force

T

1.5

Jacks stroke

m

1.7

Drilling efficiency

m/h

10-35

Moving speed

Km/h

3.5

Uphill angle

°

21

Weight of the rig

T

32

Dimension

m

8.6*2.6*3.5

Working condition

Unconsolidated formation and Bedrock

Drilling method

Top drive hydraulic rotary and pushing, hammer or mud drilling

Suitable hammer

Medium and high air pressure series

Optional accessories

Mud pump, Gentrifugal pump, Generator, Foam pump

Optional

Rig operation by truck or trailer or crawler

Mast extension

Breakout cylinder

Air compressor

Centrifugal pump

Mud pump

Water pump

Foam pump

RC pump

Screw pump

Drill pipe box

Pipe loader arm

Opening clamp

Support jack extension



Product Introduction

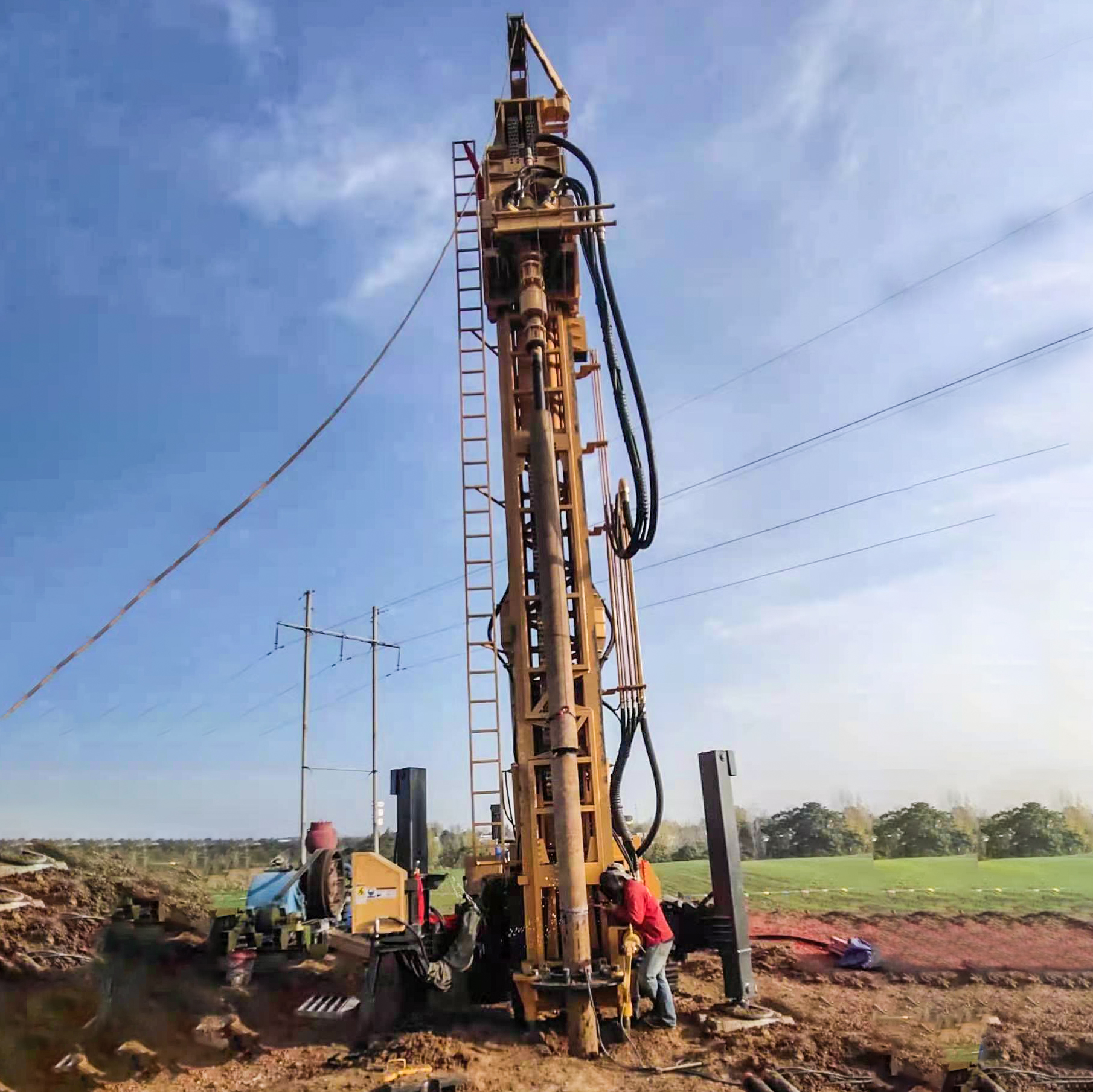

SNR1600 water well drilling rig (4)

SNR1600C drilling rig is a kind of medium and high efficient full hydraulic multifunctional water well drill rig for drilling up to 1600m and is used for water well,monitoring wells, engineering of ground-source heat pump air-conditioner,blasting hole, bolting and anchor cable, micro pile etc. Compactness and solidity are the main characteristics of the rig which is designed to work with several drilling method: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation. It can meet the drilling demand in different geological conditions and other vertical holes.

The rig can be either crawler, trailer or truck mounted and it can be personalized according to the various customers’ requirements. The drilling machine is driven by diesel engine, and rotary head is equipped with international brand low-speed and large-torque motor and gear reducer,feeding system is adopted with advanced motor -chain mechanism and adjusted by double speed. Rotating and feeding system are controlled by hydraulic pilot control which can achieve step-less speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.

Features and advantages

1. Full hydraulic control is convenient and flexible

The speed, torque, thrust axial pressure, reverse axial pressure, thrust speed and lifting speed of the drilling rig can be adjusted at any time to meet the requirements of different drilling conditions and different construction technologies.

2. Advantages of top drive rotary propulsion

It is convenient to take over and unload the drill pipe, shorten the auxiliary time, and is also conducive to follow-up drilling.

3. It can be used for multi-function drilling

All kinds of drilling techniques can be used on this kind of drilling machine, such as down the hole drilling, through air reverse circulation drilling, air lift reverse circulation drilling, cutting drilling, cone drilling, pipe following drilling, etc. The drilling machine can install mud pump, foam pump and generator according to the needs of users. The rig is also equipped with a variety of hoists to meet the different needs of customers.

4. High efficiency and low cost

Due to full hydraulic drive and top drive rotary propulsion, it is suitable for all kinds of drilling technology and drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so it has high operation efficiency. The down the hole hammer drilling technology is the main drilling technology of the drilling rig in the rock. The down the hole hammer drilling operation efficiency is high, and the single meter drilling cost is lower.

5. It can be equipped with high leg crawler chassis

The high outrigger is convenient for loading and transportation, and can be loaded directly without crane. Crawler walking is more suitable for muddy field movement.

6.Use of oil mist eliminator

Efficient and durable oil mist device and oil mist pump. In the process of drilling, the high-speed running impactor is lubricated all the time to extend its service life to a greater extent.

7. The positive and negative axial pressure can be adjusted

The best impact efficiency of all kinds of impactors has its best matching axial pressure and speed. In the process of drilling, with the increasing number of drill pipes, the axial pressure on the impactor is also increasing. Therefore, in the construction, the positive and negative axial pressure valves can be adjusted to ensure that the impactor can obtain more matching axial pressure. At this time, the impact efficiency is higher.

8. Optional rig chassis

The rig can be mounted on crawler chassis, truck chassis or trailer chassis.
