Product Introduction

XYT-1A Trailer type core drilling rig adopts four hydraulic jacks and hydraulically controlled self-supporting tower. It is installed on the trailer for easy walking and operation.

XYT-1A Trailer type core drilling rig is mainly used for core drilling, soil investigation, small water wells and diamond bit drilling technology.

Fundamental parameters

	Unit	XYT-1A
Drilling depth	m	100,180
Drilling diameter	mm	150
Rod diameter	mm	42,43
Drilling angle	°	90-75
Overall dimension	mm	4500x2200x2200
Rig weight	kg	3500
Skid		●
Rotation unit
Spindle speed
Co-rotation	r/min	/
Reverse rotation	r/min	/
Spindle stroke	mm	450
Spindle pulling force	KN	25
Spindle feeding force	KN	15
Maximum output torque	N.m	500
Hoist
Lifting speed	m/s	0.31,0.66,1.05
Lifting capacity	KN	11
Cable diameter	mm	9.3
Drum diameter	mm	140
Brake diameter	mm	252
Brake band width	mm	50
Frame moving device
Frame moving stroke	mm	410
Distance away from hole	mm	250
Hydraulic oil pump
Type		YBC-12/80
Rated flow	L/min	12
Rated pressure	Mpa	8
Rated rotation speed	r/min	1500
Power unit
Diesel engine
Type		S1100
Rated power	KW	12.1
Rated speed	r/min	2200

Main features

1. Compact structure, light weight, large main shaft diameter, long stroke and good rigidity. Hexagonal Kelly ensures torque transmission.

2. The drilling rig tower and main engine are installed on the wheel chassis with four hydraulic legs. The drilling tower has the functions of lifting, landing and folding, and the whole machine is easy to move.

3. The hydraulic mast is composed of the main mast and the mast extension, which greatly improves the work efficiency and is very convenient for transportation and operation.

4. Compared with the ordinary core drill, the trailer core drill reduces the heavy derrick and saves the cost.

2.Core Trailer Drilling Rig

5. The XYT-1A trailer type core drilling rig has high optimal speed and can meet various requirements for small-diameter diamond drilling, large-diameter cemented carbide drilling and various engineering holes drilling.

6. During feeding, the hydraulic system can adjust the feed speed and pressure to meet the drilling requirements of different formations.

7. Provide bottom hole pressure gauge to monitor drilling pressure.

8. XYT-1A Trailer type core drilling rig adopts automobile transmission and clutch, which is convenient for maintenance.

9. Centralized control panel, easy to operate.

10. The octagonal main shaft is more suitable for high torque transmission.

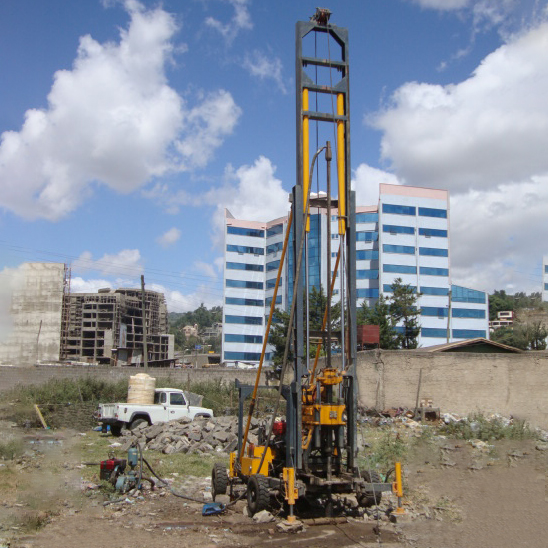

XYT-1A Trailer type core drilling rig-2
