factory low price Hinge Drilling Machine - TR138D Rotary Drilling Rig – Sinovo Detail:

Video

Technical Specification

TR138D Rotary drilling rig
Engine	Model		Cummins/CAT
	Rated power	kw	123
	Rated speed	r/min	2000
Rotary head	Max.output torque	kN´m	140
Rotary head	Drilling speed	r/min	0-38
Max. drilling diameter		mm	1500
Max. drilling depth		m	40/50
Crowd cylinder system	Max. crowd force	Kn	120
	Max. extraction force	Kn	120
	Max. stroke	mm	3100
Main winch	Max. pull force	Kn	140
	Max. pull speed	m/min	55
	Wire rope diameter	mm	26
Auxiliary winch	Max. pull force	Kn	50
	Max. pull speed	m/min	30
	Wire rope diameter	mm	16
Mast inclination Side/ forwards/ backwards		°	±4/5/90
Interlocking Kelly bar			ɸ355410
Friction Kelly bar (optional)			ɸ355510
Undercarrige	Max. traveling speed	km/h	2
	Max. rotation speed	r/min	3
	Chassis width (extension)	mm	3000/3900
	Tracks width	mm	600
	Caterpillar grounding Length	mm	3900
Working Pressure of Hydraulic System		Mpa	32
Total weight with kelly bar		kg	36000
Dimension	Working (Lx Wx H)	mm	7500x3900x15800
Dimension	Transportation (Lx Wx H)	mm	12250x3000x3520

Product Description

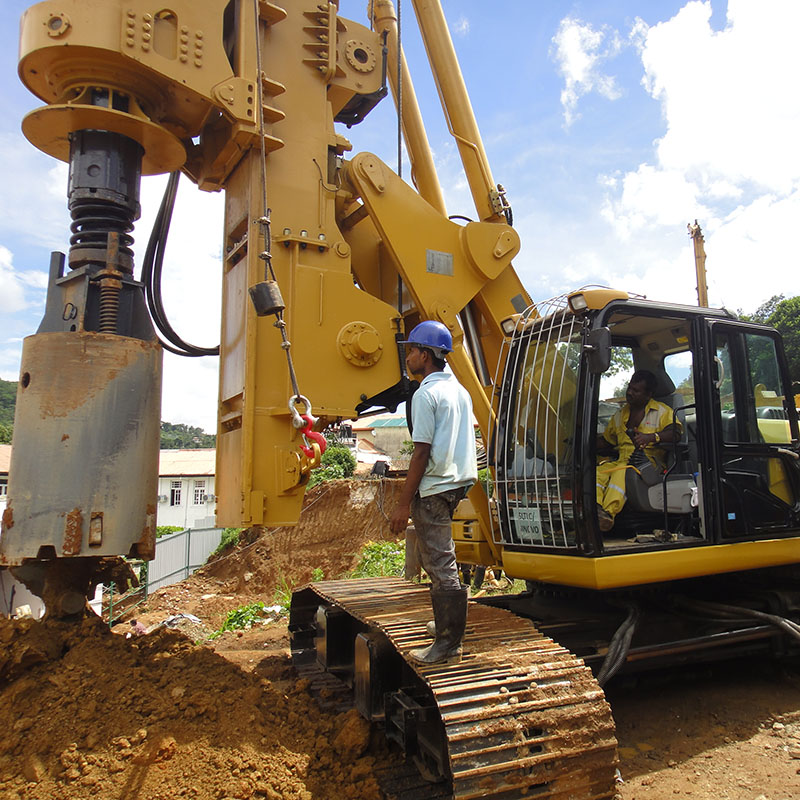

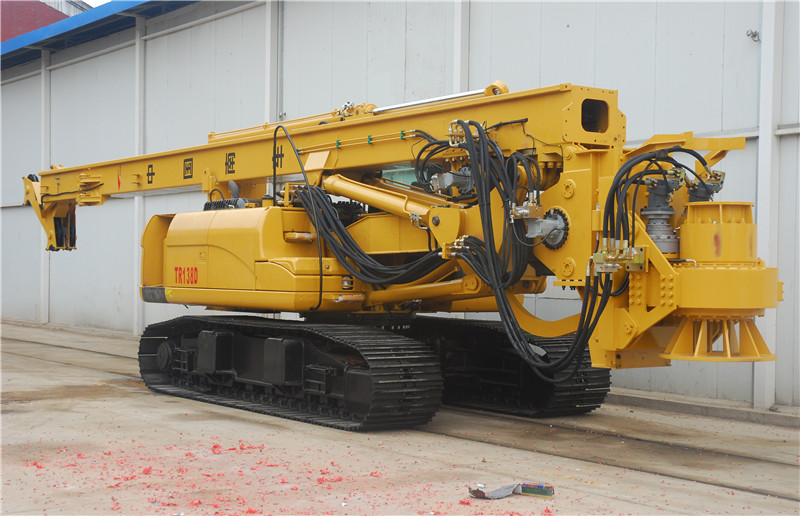

TR138D rotary drilling rig is new designed self-erecting rig which mounted on original Caterpillar 323D base, adopts advanced hydraulic loading back technology, integrates advanced electronic control technology. The whole performance ofTR138D rotary drilling rig has reached advanced world standards. It is suitable for the following applications: Drilling with telescopic friction or interlocking kelly bar-standard Drilling cased bore piles( casing driven by rotary head or optionally by casing oscillator)The corresponding improvement on both structure and control which makes the structure more simple and compact, the performance more reliable and the operation more humanized.

MAIN FEATURES

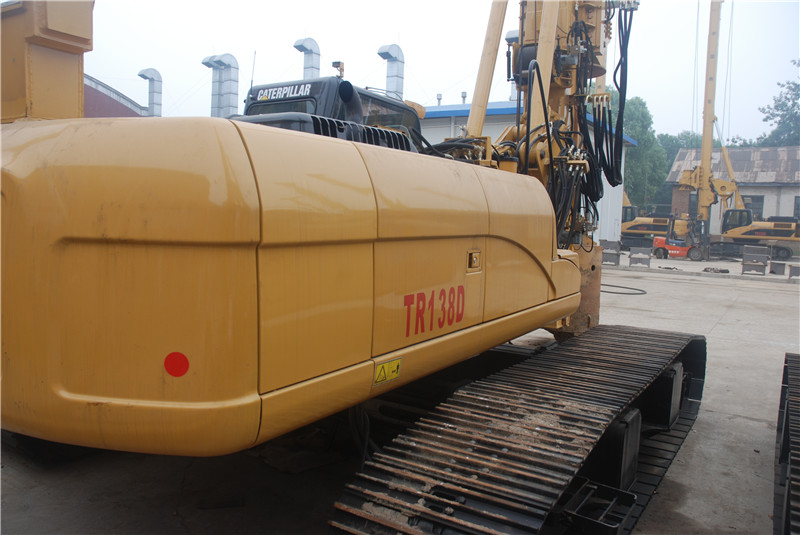

TR138D rotary drilling rig has adopted CAT C6. 4 engine with ACERTTM Technology offers more engine power and runs at lower for better fuel efficiency and reduced wear. turbo suction, supply 147 hp power, Optimal machine performance, more power output, less emission

TR138D rotary drilling rig has new designing original hydraulic system. Hydraulic systems adopt Rexroth motor and valve, ensure power high efficiency when and where required. Wide crawler provides lower grounding pressure and improves the whole machine stability and adaptability. It is easy to work and transport by extendable crawler TR138D has separated auxiliary winch collocated on the mast from triangle parts, good view and maintenance more convenient, Compacted Parallelogram structure to reduce the length and height of the whole machine, reduce the machine, s request for the work space, easy for transportation

Electric systems are from Pal-fin auto-control, optimal design of electric control system improves the control accuracy and the feedback speed.

All of key components adopted first class international brand, increase the interchangeability and running stability, more reasonable depth measuring device.

The newest designed winch drum structure which the service life of steel wire rope extend to 3000m

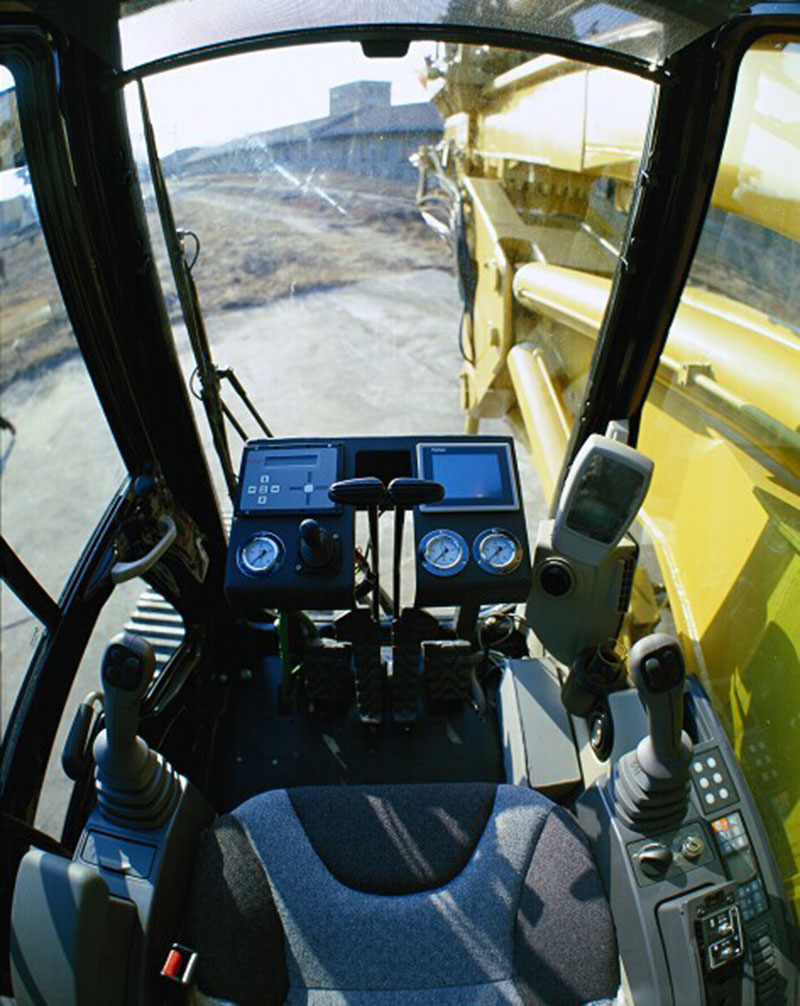

TR138D has a large-space soundproofed cabin with high-power air condition and luxurious damping seat provides driver high-comfort and pleasured working environment. At two side, there are very convenient and humanization-designed operating joystick, Touch screen and monitor show the parameters of system includes warning device for abnormal situation. The pressure gage can also provide more intuitive working condition for the operating driver. It has the pre-automatic detection function before starting the whole machine
