Fully hydraulic portable Core drilling machine

Product Introduction

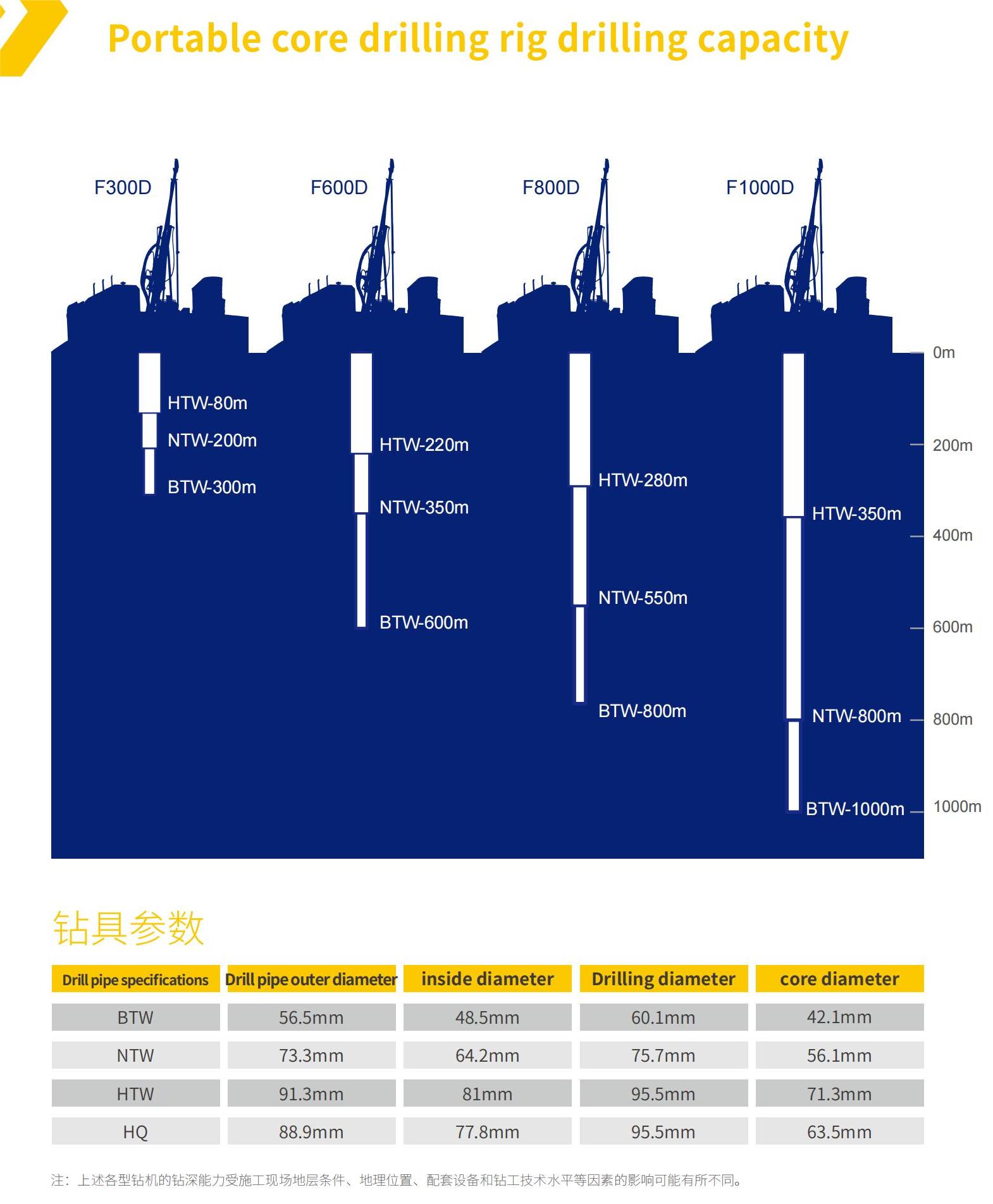

Fully hydraulic portable rock core drilling rig has introduced Cana- Dian portable drilling rig technology, with original core components imported and domestically produced and assembled. The technology is mature and reliable, adopting a lightweight modular design, integrated control of the power unit, patented sliding frame, and can drill at constant pressure with high drilling speed. It is a high-performance drilling rig that conforms to national policies to develop green mines and implement green exploration. The series of products include F300D, F600D, F800D, and F1000D hosts. Widely used in geological prospecting and exploration, basic engineering, water conservancy and hydropower, and tunnel strip engineering exploration, particularly skilled in rock core drilling and exploration in mountainous areas, forests, plateaus, and other areas with complex terrain and inconvenient transportation.

Product Features

Green exploration

The use of minimally invasive drilling technology eliminates the need for road construction, reduces damage to vegetation and landscape environment, and uses environmentally friendly mud materials to maximize the protection of the construction site and surrounding environment

Small and portable

Lightweight modular design for easy disassembly, with over 80% of structural components made of high-strength aluminum alloy material. A single module weighs up to 160kg and can be transported by four people, making it safer and more convenient.

Reliable and stable

International high-end brand hydraulic components, with integrated systems, high reliability, smooth operation, and the ability to operate day and night without faults, each component can withstand severe working conditions, thereby increasing the working time of the drilling rig and requiring less manta- Nance costs.

Safe and efficient

Mast type drilling frame, without the need for tower operation, increases the safety factor of operation, hydraulic overload automatic protection device, to prevent accidents, daily electricity use adopts 12 V DC power supply, which is safer. Integrated control of the power unit, capable of constant pressure drilling, equipped with thin-walled drilling tools, high speed, smooth cutting, and fast footage.

 Advanced technology

By using a direct connected drill pipe and full hole drilling with a pipe, undisturbed rock cores can be taken from complex and fractured formations, easily collapsed formations, weathered bedrock layers, and other complex formations, with a recovery rate of over 97% to ensure drilling quality.

Cost savings

Quick entry and relocation, easy disassembly, easy installation, manual transportation through small roads, no need to build trans- partition roads, can complete the foundation disassembly and assembly in 1-2 hours, shorten the exploration period, and only need a 4×4 meter site for drilling rig installation, saving infrastructure and management costs for mining enterprises.

Power: Adopting a Kubota turbocharged diesel engine imported from Japan, with mature technology and strong power output. Equipped with original imported KTR couplings from Germany, the power output is stable and reliable.

hydraulic pressure: The hydraulic operating system adopts interna- tonally renowned hydraulic components, import- ed multi-channel directional valves from Canada, integrated hydraulic circuit blocks, and Italian quick change connectors.

Mud: Adopting an Italian imported BOTOLINI mud pump and hydraulic drive, the ten position control valve group can accurately adjust the mud flow according to different situations in the hole.

The aluminum hydraulic mixer is meticulously designed with a frame structure to form circulating eddies during the mixing process, eliminating waste of mud materials and making the mud dissolve more evenly.
