Geological drilling rigs are mainly used as drilling machinery for industrial exploration including coal fields, petroleum, metallurgy, and minerals.

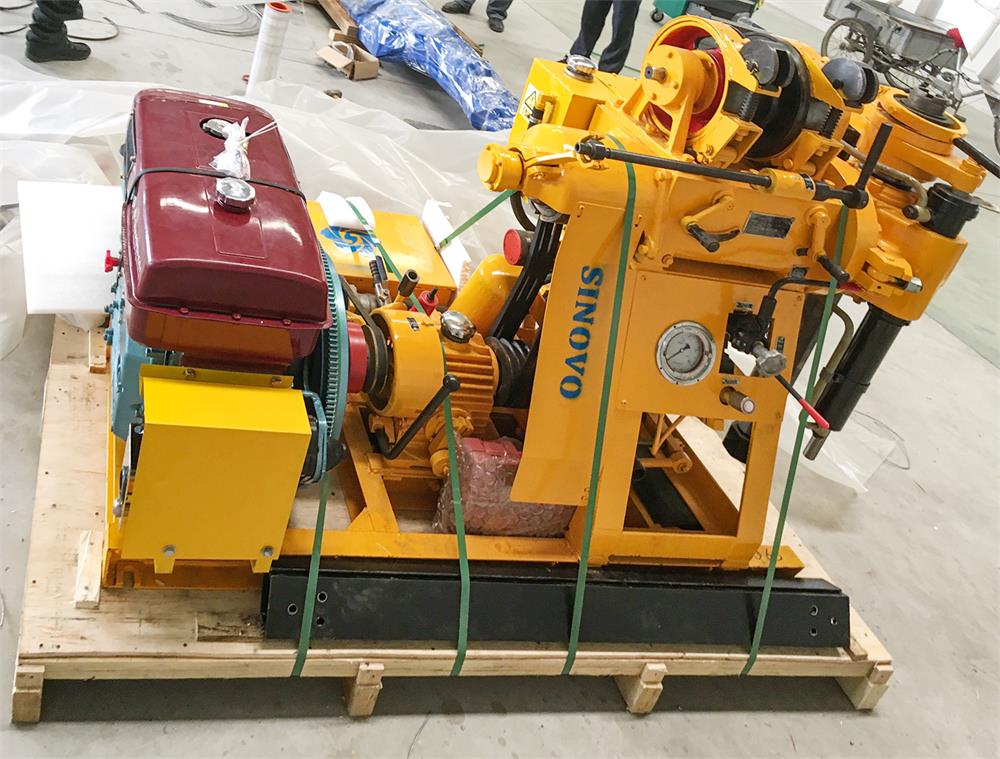

Structural features: The drilling rig adopts mechanical transmission, with simple structure and easy maintenance and operation. The drilling rig has an oil pressure automatic feeding mechanism, which improves the drilling efficiency and reduces the physical labor of the workers; the drilling rig adopts a ball chuck clamping mechanism instead of the chuck, which can implement non-stop rod reversing, easy to operate, safe and reliable; the drilling rig is equipped with a bottom pressure Indicator gauge, easy to grasp the situation in the hole, centralized handle, easy to operate.
2. Prospecting drilling rigs

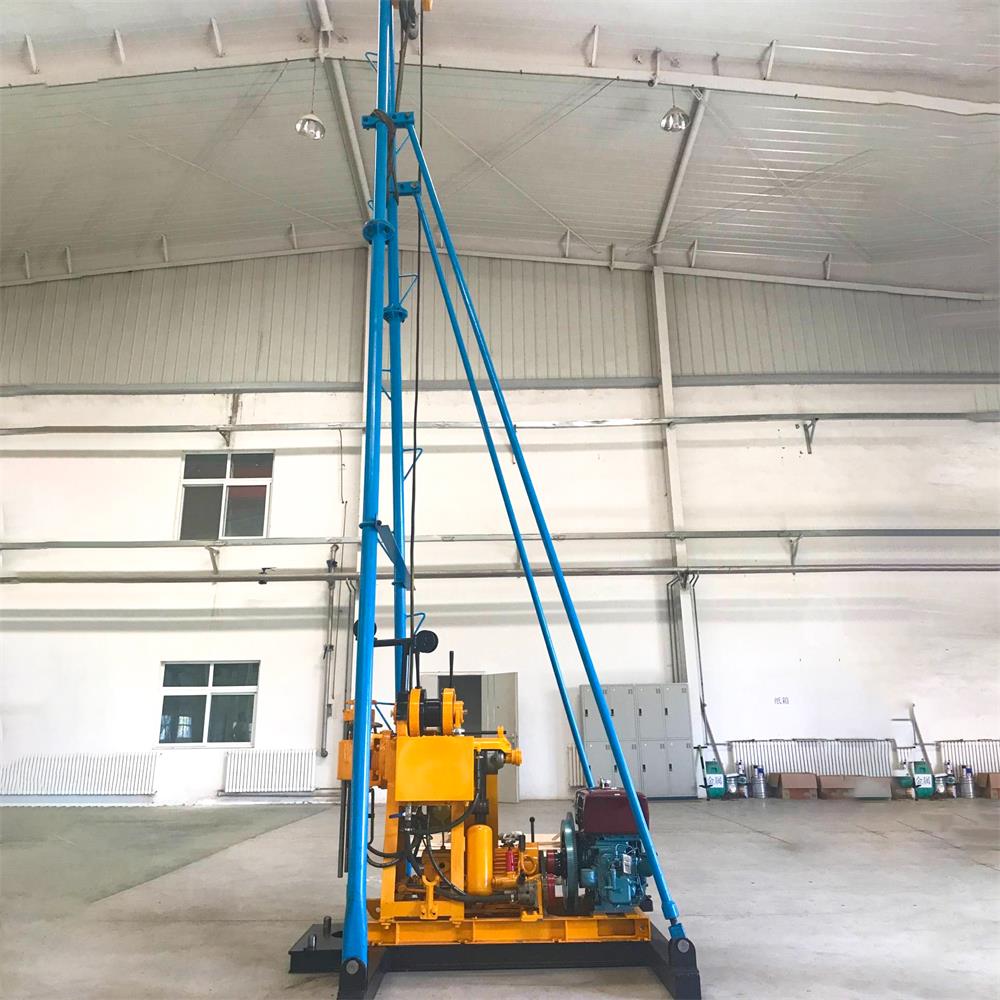

It is mainly used for deep hole drilling equipment in the fields of geological prospecting, hydrological water wells, coal field geological exploration, oil and natural gas exploration and development. Concentrating the advantages of the vertical shaft hydraulic drilling rig, it can be used for small-diameter diamond drilling and large-diameter drilling, vertical drilling and oblique drilling. This drilling rig is an ideal equipment for deep hole geological exploration drilling.
Structural features: Hydraulic transmission is adopted, the vertical shaft rotates at a high speed, and the speed range is wide. The elevator is equipped with water brakes, and the drilling tool is lowered smoothly and safely. Oil-soaked clutch, stable start, with braking device. A special valve port is reserved for the hydraulic operating system, which can be used when equipped with a pipe wrench. The drilling rig has a large forward and backward moving distance, which is convenient for hole operation. The diameter of the through hole of the vertical shaft is large, which can meet the requirements of various drilling techniques. The weight of the whole machine is moderate, the disassembly performance is good, and it is convenient for transportation and relocation.
Sinovo is a professional manufacturer and supplier of geological drilling rigs, mud pumps, drilling tools, etc. in China. The products are sold at home and abroad. Welcome to consult for more information.
Post time: Dec-02-2022
