Technical Parameters
|
Diameter (mm) |
Dimensions D×L (mm) |
Weight (t) |
Cutter disk |
Steering Cylinder (kN × set) |
Internal pipe (mm) |
||
|
Power (kW×set) |
Torque (Kn·m) |
rpm |
|||||
|
NPD 800 |
1020×3400 |
5 |
75×2 |
48 |
4.5 |
260×4 |
50 |
|
NPD 1000 |
1220×3600 |
6.5 |
15×2 |
100 |
3.0 |
420×4 |
50 |
|
NPD 1200 |
1460×4000 |
8 |
15×2 |
100 |
3.0 |
420×4 |
so |
|
N PD 1350 |
1660×4000 |
10 |
22×2 |
150 |
2.8 |
600×4 |
50 |
|
NPD 1500 |
1820×4000 |
14 |
30×2 |
150 |
2.8 |
800×4 |
70 |
|
NPD 1650 |
2000×4200 |
16 |
30×2 |
250 |
2.35 |
800×4 |
70 |
|
NPD 1800 |
2180×4200 |
24 |
30×3 |
300 |
2 |
1000×4 |
70 |
|
NPD 2000 |
2420×4200 |
30 |
30×4 |
400 |
1.5 |
1000×4 |
80 |
|
NPD 2200 |
2660×4500 |
35 |
30×4 |
500 |
1.5 |
800×8 |
80 |
|
NPD 2400 |
2900×4800 |
40 |
37×4 |
600 |
1.5 |
1000×4 |
80 |
|
NPD 2600 |
3140×5000 |
48 |
37×4 |
1000 |
1.2 |
1200×8 |
100 |

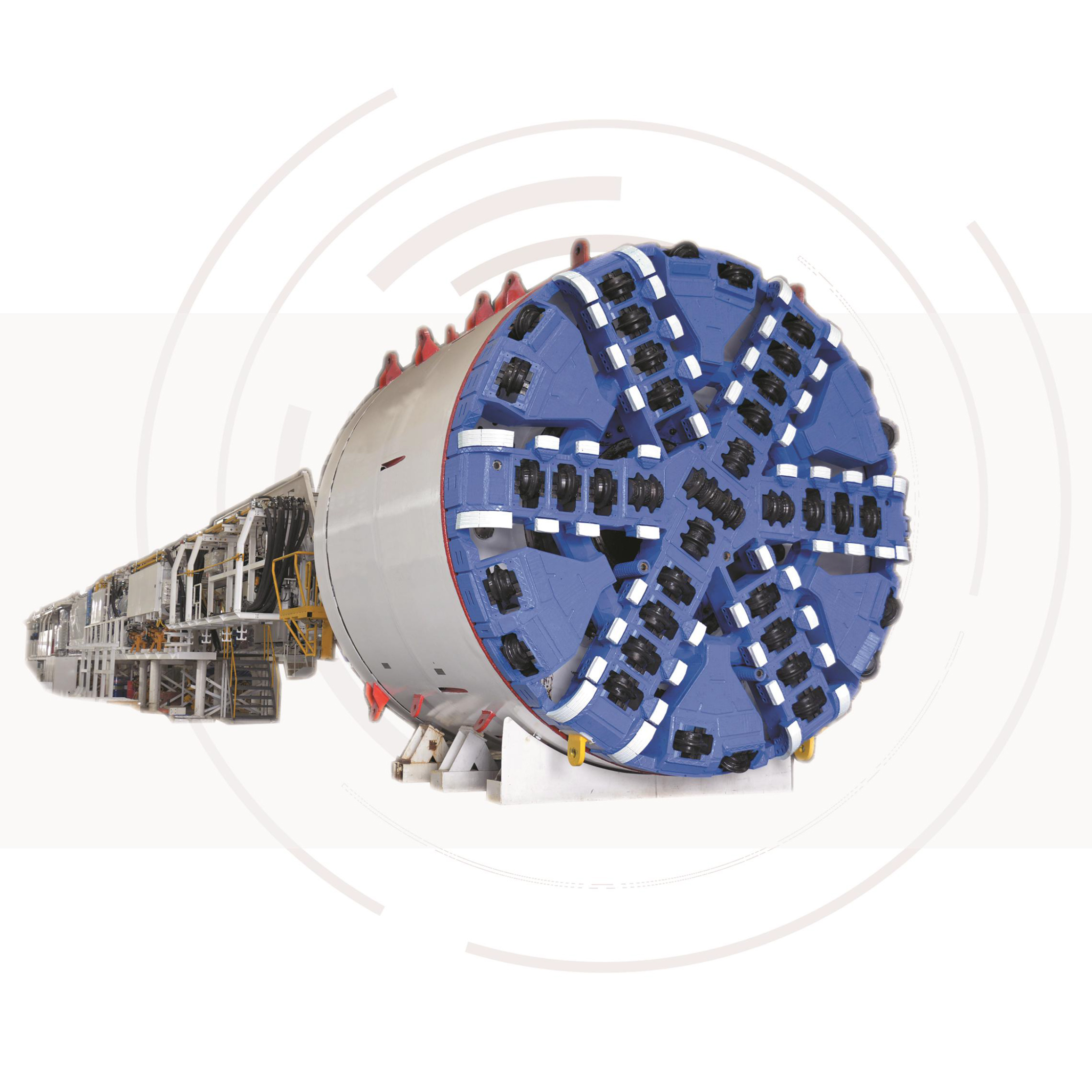

Product Introduction
Device positioning:
Safe Tunneling Technology in Heterogeneous Ground
Geological condition:
Soft soils, heterogeneous formations (sand, gravel, high permeability and high water pressure)
The NPD series pipe jacking machine is mainly suitable for the geological conditions with high groundwater pressure and high soil permeability coefficient. The excavated slag is pumped out of the tunnel in the form of mud through the mud pump, so it has the characteristics of high working efficiency and clean working environment.
According to the different ways of controlling the mud on the excavation surface, the NPD series pipe jacking machine can be divided into two types: direct control type and indirect control type (air pressure composite control type).
a. The direct control type pipe jacking machine can control the working pressure of the mud water tank by adjusting the speed of the mud pump or adjusting the opening of the mud water control valve. This control method is simple and convenient, and the failure rate is low.
b. The indirect control pipe jacking machine indirectly adjusts the working pressure of muddy water tank by changing the pressure of the air cushion tank. This control method has a sensitive response and high control accuracy.
1. The automatic control air cushion can provide precise support for the tunnel face, so as to ensure the safety of tunnel driving to the greatest extent.
2. Tunneling can also be carried out when the water pressure is above 15bar.
3. Use mud as the main medium to balance the formation pressure on the excavation surface of the tunnel, and discharge the slag through the mud conveying system.
4. NPD series pipe jacking machine is suitable for tunnel construction with high water pressure and high ground settlement requirements.
5. High driving efficiency, safe and reliable, with two balance modes of direct control and indirect control.
6. The NPD series pipe jacking machine with advanced and reliable cutter head design and mud circulation.
7. The NPD series pipe jacking machine adopt reliable main bearing, main drive seal and main drive reducer, with long service life and high safety factor.
8. Self-developed control software system, the performance of the whole machine is safe and reliable, and the operation is convenient.
9. Wide applicable various soil, such as soft soil, clay, sand, gravel soil, hard soil, backfill, etc.
10. Independent water injection, discharge system.
11. The fastest speed is nearly 200mm per minute.
12. The construction of high precision, steering maybe the up, down, left and right, and the most steering angle of 5.5 degrees.
13. Use the central control system on the ground, safe, intuitive, and convenient.
14. A series of tailor-made solutions can be provided for different project requirements.
