Popular Design for Boring Machine Cnc - TR360 Rotary Drilling Rig – Sinovo Detail:

Video

Technical Specification

Engine	Model		SCANIA/CAT
	Rated power	kw	331
	Rated speed	r/min	2200
Rotary head	Max.output torque	kN´m	360
Rotary head	Drilling speed	r/min	5-23
Max. drilling diameter		mm	2500
Max. drilling depth		m	66/100
Crowd cylinder system	Max. crowd force	Kn	300
	Max. extraction force	Kn	300
	Max. stroke	mm	6000
Main winch	Max. pull force	Kn	360
	Max. pull speed	m/min	63
	Wire rope diameter	mm	36
Auxiliary winch	Max. pull force	Kn	100
	Max. pull speed	m/min	65
	Wire rope diameter	mm	20
Mast inclination Side/ forwards/ backwards		°	±3/3.5/90
Interlocking Kelly bar			ɸ530418m
Friction Kelly bar (optional)			ɸ530618m
	Traction	Kn	720
	Tracks width	mm	800
	Caterpillar grounding Length	mm	5160
Working Pressure of Hydraulic System		Mpa	32
Total weight with kelly bar		kg	113000
Dimension	Working (Lx Wx H)	mm	9490x4800x26290
Dimension	Transportation (Lx Wx H)	mm	17872x3600x3400

Product Description

TR360D rotary drilling rig is new designed sell-erecting ig mounted on original Caterpillar 345D base adopts advanced hydraulic loading back technology integrates advanced electronic control technology, which makes the whole performance of TR360D rotary drilling rig each advanced world standards.

TR360D rotary drilling rig is specially designed to suit the following applications:

Drilling with telescopic friction or interlocking kelly bar-standard Supply ,

Drilling cased bore piles(casing driven by rotary head or optionally by casing oscillation)

CFA Piles by means of continue auger

:Either crowd winch system or hydraulic crowd cylinder system

Displacement piles

Soil-mixing

Main Features

Adopts Big – Triangle support structure to guarantee the working stability for drilling rig.

Advanced rotary head is designed by the total innovative technology , and absorb the latest development in foundation equipment . Driven by three hydraulic motors with the configured reducers , the rotary head failure rate will be declined greatly by the single reduction gear unit in the reducer . In that case , the structure of rotary head is compact with powerful output capability.

Main Winch adopts CSR Original driving structure of double motors and double reducers ( patent ZL 2008 20233925.0 ) In order to improve the service life of the rope , we make a large radius drum which is enough to contain the wire rope in one layer . Commonly , the overloading , friction and extrusion are minimized ; the service life of wire rope is improved greatly.

TR360D Rig applies the winch crowd system with 14m super long stroke , and provide stronger push-down force . t allows the CFA drilling and realizes the multi-function of the machine . It helps to go through the hard rock by continuous down-pulling of Kelly bar .

Electronic control system integrates high-standard engineering machinery controller , monitor intelligent sensor and other electronics , with precise measurement and monitoring . Realize the adjustment of the perpendicularity of the mast accurately and quickly .

TR360C

Perfect stability of the whole machine . The main winch is assembled on the rear of turret . The weight of the main winch acts the role of counterweight Large breadth of chassis ( 4400×5000 ) the big section box structure of the mast with better rigidity of mast ensures the perfect stability of the whole machine .

The controlling system records the rotating position of the upper body with the automatic positioning device in order to help the operator remember the correct position of the pile point automatically.

TR360D rotary drilling rig adopts Patented Carrier Structure ( patent NO : ZL 2008 20233926 . 5 ) to solve the transport problem of the exceed-sized drilling rig.

Full automatic turning mast with centralized lubrication system improves turning piece using life , reducing maintenance cost.

More reasonable depth measuring device .

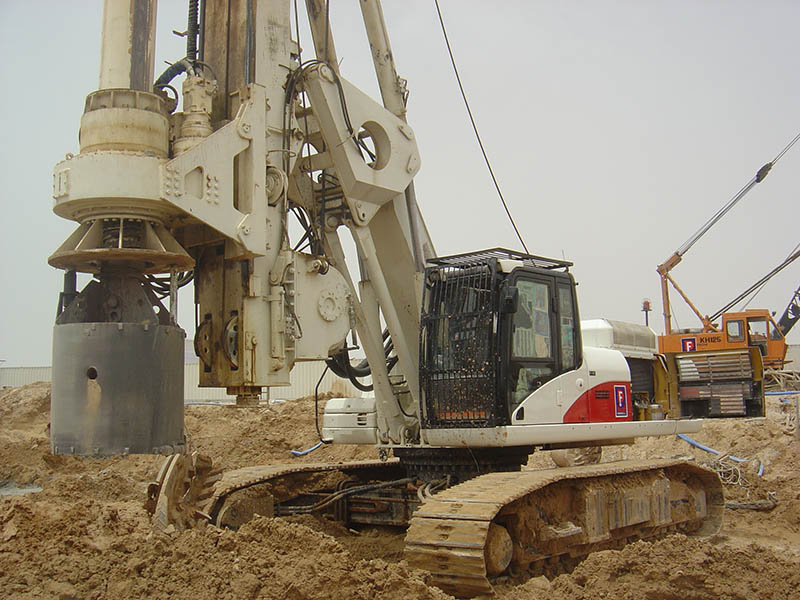

Product detail pictures:
