The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies. Due to the modular design, the pile breaker can be used for breaking different sizes of pile. Equiped with the chains, it can work with different equipments to break piles.
Feature:
The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safty and steadibility. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supe, vision department.
| SPA8 PLUS截桩机各工况施工参考参数/Construction’s Parameters | ||||
| 模块数量 | 使用桩径/mm | 最小挖机吨位/t | 整机重量/kg | 单次截桩最大高度/mm |
| Module numbers | The diameter range | Platform weight | weight | Height of single crush pile |
| 6 | 450-600 | 20 | 2400 | 300 |
| 7 | 650-800 | 22 | 2800 | 300 |
| 8 | 850-1000 | 26 | 3200 | 300 |
| 9 | 950-1200 | 27 | 3600 | 300 |
| 10 | 1150-1400 | 30 | 4000 | 300 |
| 11 | 1350-1600 | 32 | 4400 | 300 |
| 13 | 1650-1800 | 35 | 5200 | 300 |
| 14 | 1850-2100 | 35 | 5600 | 300 |
| 15 | 2050-2300 | 40 | 6000 | 300 |
| 16 | 2250-2500 | 40 | 6400 | 300 |

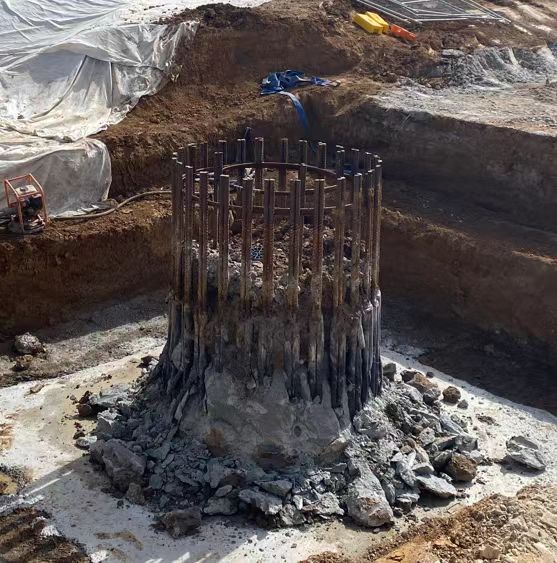

Construction photograph

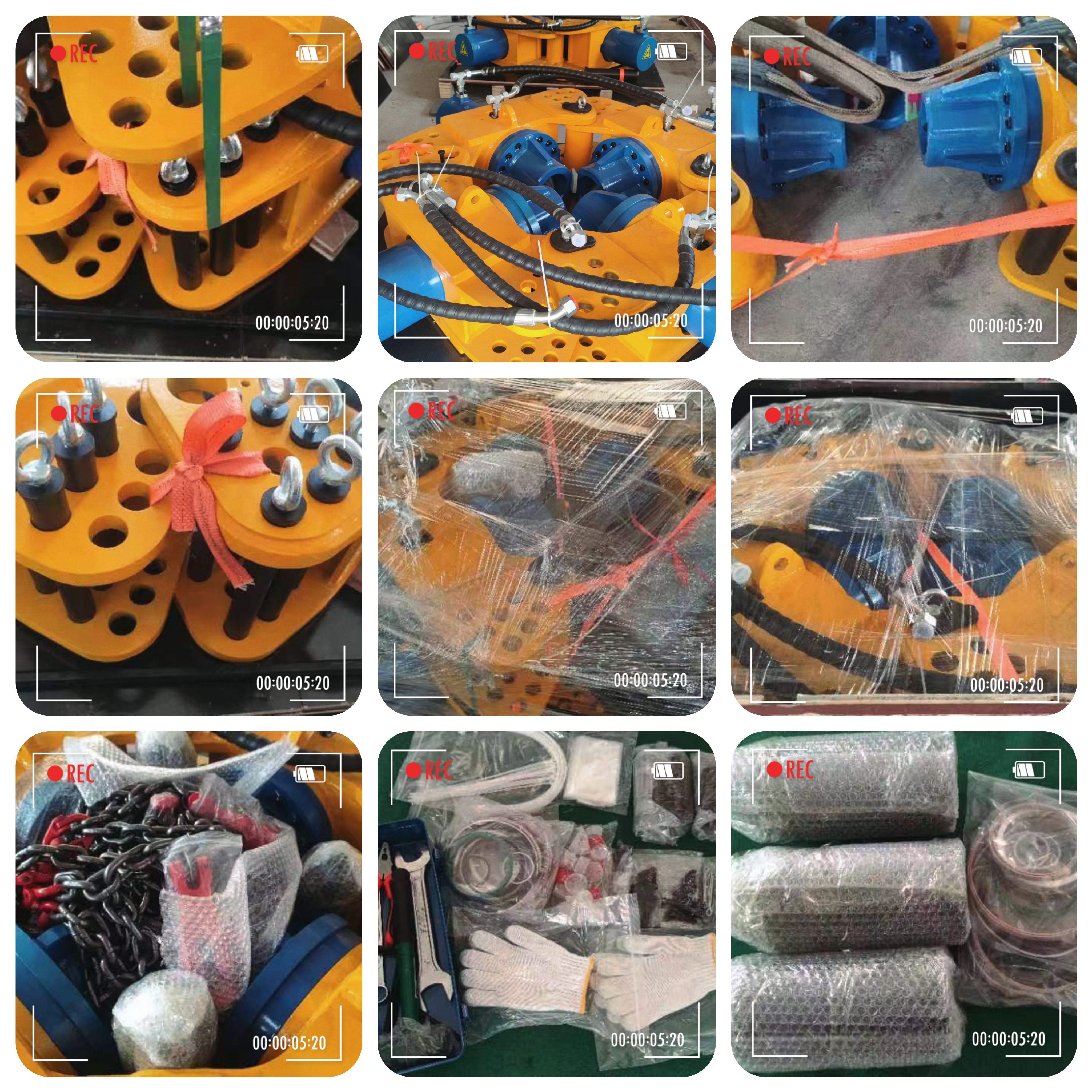

Delivery photo
