Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo

Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo Featured Image
  • Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo
  • Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo
  • Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo

Short Description:


+8613801057171

Product Detail

Product Tags

Related Video

Feedback (2)

The key to our success is "Good Product or service High quality, Reasonable Rate and Efficient Service" for Under Reamed Piles Are Normally Bored Piles, Single Shield Tbm, Lathe Spindle Bore, We, with fantastic passion and faithfulness, are willing to offer you with best services and striding forward with you to make a bright foreseeable future.
Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo Detail:

Technical Specification

　 TH-60
Construction method of the pile drummer CFA construction method
The weight of hammer core 5000kg
The journey of hammer body(adjustable) 200-1200mm
Max beat power 60KJ
Beat frequency(adjustable) 30-80times/minute
Max pile driving length 16m
Max pile driving 400*400mm
Max drilling depth 30m
Drilling diameter 400mm
Max drilling torque 60KN.m
Drilling speed 6-23rpm
Max pull-down force 170kn
Undercarriage CAT/ self undercarriage
Engine model C7 / Cummins
Rated power 186KW
Main winch pull force(the first layer ) 170kn
Auxiliary winch pull force(the first layer) 110kn
Chassis length 4940mm
Track shoe width 800mm
Undercarriage CAT325D
Total weight 39T

Product Description

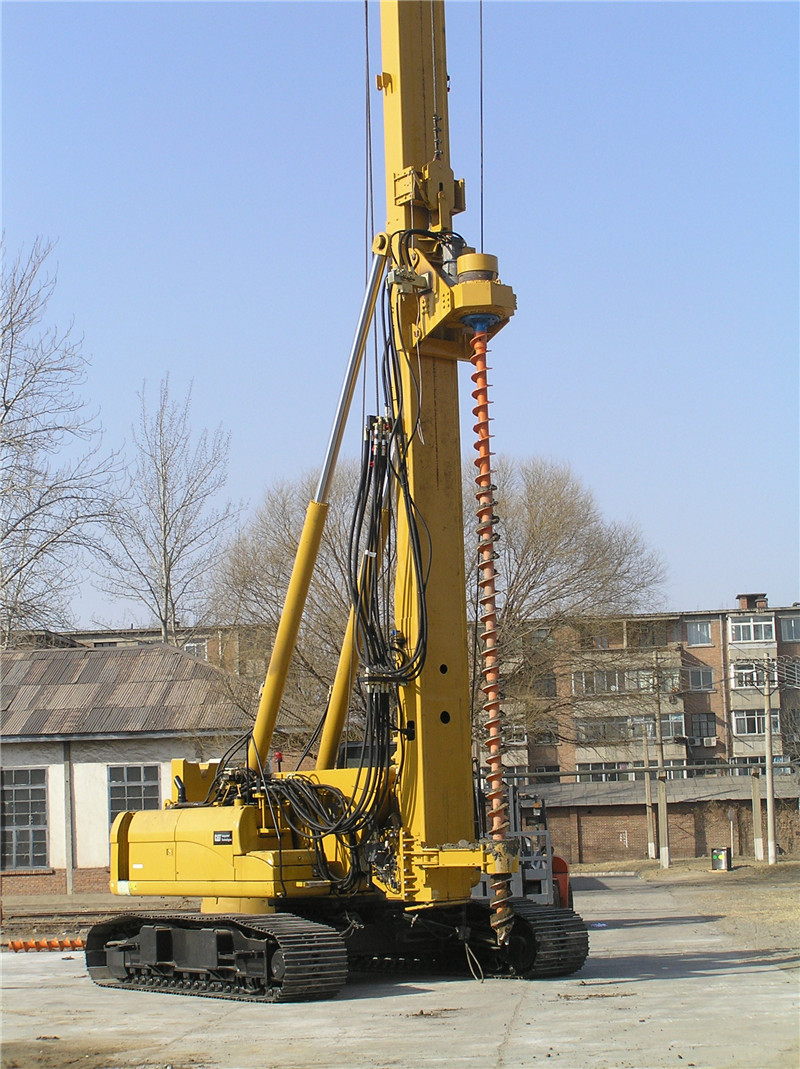

1-1.Hydraulic piling rig


1

As a reliable pilling rig manufacturer in China, SINOVO International Company mainly produces hydraulic pilling rigs, which can be used together with hydraulic pile hammer, multi-purpose pile hammer, rotary pilling rig, and CFA pile drilling equipment.

Our TH-60 hydraulic pilling rig is a newly-designed construction machine that is widely used in the construction of highways, bridges, and building etc. It is based on Caterpillar undercarriage and consist of hydraulic impact hammer which includes hammer, hydraulic hoses, power pack, bell driving head.

This hydraulic pilling rig is a reliable, versatile and durable machine. Its max pile hammer is 300mm and the max pile depth is 20m per impacting which allow our pilling rig to suit requirements of many foundation engineering projects.

As a result of modular design of their components, our hydraulic pilling rigs can be used in a variety of applications when fitted with the following devices.
-different types of mast, each with different extension pieces and components
-different models of rotary heads with optional hydraulic rotary drilling pile hammer, auger
-service winch

Advantage

High Automation

Digitalization Surveillance & Control System

World’s Leading Performance

Multifunction

C182

Scope Of Application

Tube Pile , Square Pile, In Situ Pile Steel Tube . H-pile , Steel Board, CFA pile, Bore pile.

1.Packaging & Shipping 2.Successful Overseas Projects 3.About Sinovogroup 4.Factory Tour 5.SINOVO on Exihibition and our team 6.Certificats 7.FAQ

Product detail pictures:

Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo detail pictures

Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo detail pictures

Wholesale Price China Concrete Spun Pile - TH-60 Hydraulic piling rig – Sinovo detail pictures
